Compiler/MSP432P401R: UART in MSP432

uart.c

/*UART CONFIGURATION*/
void uart_init(void){
     /*Configure UART*/
     EUSCI_A2->CTLW0 |= EUSCI_A_CTLW0_SWRST;                        /*PUT EUSCI IN RESET*/
     EUSCI_A2->CTLW0  = EUSCI_A_CTLW0_SWRST |                       /*REMAIN EUSCI IN RESET*/
                      EUSCI_B_CTLW0_SSEL__SMCLK;                    /*CONFIGURE EUSCI CLOCK SMCLK*/
     /*Baud Rate calculation
     *12000000/(16*9600) = 78.125
     *Fractional portion = 0.125
     *User's Guide Table 21-4: UCBRSx = 0x10
     *UCBRFx = int ( (78.125-78)*16) = 2
     */
     EUSCI_A2->BRW = 78;                                            /*12000000/16/9600*/
     EUSCI_A2->MCTLW = (2 << EUSCI_A_MCTLW_BRF_OFS) |
                       EUSCI_A_MCTLW_OS16;
     EUSCI_A2->CTLW0 &= ~(EUSCI_A_CTLW0_SWRST);                     /*INITIALIZE EUSCI*/
     EUSCI_A2->IFG   &= ~(EUSCI_A_IFG_RXIFG);
     EUSCI_A2->IE |= EUSCI_A_IE_RXIE;                               /*ENABLE THE UART RX INTERRUPT*/


     /*ENABLE GLOBAL INTERRUPT*/
     __enable_irq();
     /*ENABLE NVIC IN EUSCI_A2 INTERRUPT*/
     NVIC->ISER[0] = 1 << ((EUSCIA2_IRQn) & 31);

}
/*UART PORTS*/
void confg_uart_wired(void){
     P3->SEL0 |= UART_TX | UART_RX;                                /*SET 2 UART PIN AS SECOND FUNCTION*/
}
/*UART CLOCK SYSTEM*/
void uart_cs(void){
     CS->KEY  = CS_KEY_VAL;                                        /*UNLOCK CS MODULE REGISTER ACESS*/
     CS->CTL0 = 0;                                                 /*RESET TUNING PARAMETERS*/
     CS->CTL0 = CS_CTL0_DCORSEL_3;                                 /*SET DCO TO 12MHz (NOMINAL, CENTER OF 8-16MHz RANGE)*/
     CS->CTL1 = CS_CTL1_SELA_2 |                                   /*SELECT ACLK = REFO*/
                CS_CTL1_SELS_3 |                                   /*SMCLK = DCO*/
                CS_CTL1_SELM_3;                                    /*MCLK = DCO*/
     CS->KEY  = 0;
}


void EUSCIA2_IRQHandler(void){
    if(EUSCI_A2->IFG & EUSCI_A_IFG_RXIFG){
        LED_PyOUT(G_LED);

    }
    if(EUSCI_A2->IFG & EUSCI_A_IFG_TXIFG){
        LED_PyOUT(R_LED);                                        /*LIGHT UP P2.x LED ON RX*/
    }
}

main.c

void main(void){
    /*CLEAR ALL LED RGB*/
    LED_PxCLR(R_LED|G_LED|B_LED);
    LED_PyDIR(R_LED|G_LED|B_LED);

    WatchDogHold();
    uart_cs();
    confg_uart_wired();
    uart_init();
    while(1){

    }
}

void WatchDogHold(void){
WDTCTL = WDTPW | WDTHOLD;  /*STOP WATCHDOG TIMER*/
}

There are example programs available at the Product page ("Tools and Software") but I think you have it almost right.

> if(EUSCI_A2->IFG & EUSCI_A_IFG_RXIFG){
> LED_PyOUT(G_LED);

You need to clear RXIFG or it will keep happening. The safest way to do this (if you don't care what the byte is) is:

> (void)EUSCI_A2->RXBUF; // Read Rx char and throw it away (clears RXIFG)
------
> if(EUSCI_A2->IFG & EUSCI_A_IFG_TXIFG){
> LED_PyOUT(R_LED); /*LIGHT UP P2.x LED ON RX*/

I'll just point out here that in this program TXIFG will always be set . This is fine, but: Are R_LED and G_LED mutually exclusive?

Bruce McKenney first of all Thank you for your help.

I am trying to mount a program that sends data (text) through the UART to a bluetooth module. R_LED and G_LED are assigned to the MSP432 card, and are only used for debugging. Verify that this transmit or receive, however I did not understand the operation of RXIFG and TXIFG.if I have understood well the part of the interruption can be done as follow:

void EUSCIA2_IRQHandler(void){
    if(EUSCI_A2->IFG & EUSCI_A_IFG_RXIFG){
        LED_PyOUT(G_LED);                                        /*LIGHT UP P2.1 LED ON RX*/
        EUSCI_A2->IFG &= ~(EUSCI_A_IFG_RXIFG);
    }
    if(EUSCI_A2->IFG & EUSCI_A_IFG_TXIFG){
        LED_PyOUT(R_LED);                                        /*LIGHT UP P2.0 LED ON TX*/
        while(!(EUSCI_A2->IFG & EUSCI_A_IFG_TXIFG));

    }
}

This may be the doubt of many other users, after resolving this problem I will make available the resources to be able to help everyone who has the same problem.

> EUSCI_A2->IFG &= ~(EUSCI_A_IFG_RXIFG);
I don't recommend that you clear RXIFG this way. Rather, you should clear it by reading RXBUF (as I described above). In a full application, you would be reading RXBUF anyway, and then doing something with the result, so if you prefer you could code it as:
> unsigned char c = EUSCI_A2->RXBUF; // Read Rx char (clears RXIFG)
and add code to do something with "c" when you figure out what.
------
> while(!(EUSCI_A2->IFG & EUSCI_A_IFG_TXIFG));
This is harmless, since you determined already that TXIFG is set. I mention it since it's generally a bad habit to spin on TXIFG (or anything else, for that matter) in an ISR. Here again, what code goes here depends on how the rest of your application develops.

ok, I made some modifications and some implementations based on what you told me

uart.c

char RX_Buffer[];
int BUFFER_COUNT = 0;

/*UART CONFIGURATION*/
void uart_init(void){
     /*Configure UART*/
     EUSCI_A2->CTLW0 |= EUSCI_A_CTLW0_SWRST;                        /*PUT EUSCI IN RESET*/
     EUSCI_A2->CTLW0  = EUSCI_A_CTLW0_SWRST |                       /*REMAIN EUSCI IN RESET*/
                      EUSCI_B_CTLW0_SSEL__SMCLK;                    /*CONFIGURE EUSCI CLOCK SMCLK*/
     /*Baud Rate calculation
     *12000000/(16*9600) = 78.125
     *Fractional portion = 0.125
     *User's Guide Table 21-4: UCBRSx = 0x10
     *UCBRFx = int ( (78.125-78)*16) = 2
     */
     EUSCI_A2->BRW = 78;                                            /*12000000/16/9600*/
     EUSCI_A2->MCTLW = (2 << EUSCI_A_MCTLW_BRF_OFS) |
                       EUSCI_A_MCTLW_OS16;
     EUSCI_A2->CTLW0 &= ~(EUSCI_A_CTLW0_SWRST);                     /*INITIALIZE EUSCI*/
     EUSCI_A2->IFG   &= ~(EUSCI_A_IFG_RXIFG);
     EUSCI_A2->IE |= EUSCI_A_IE_RXIE;                               /*ENABLE THE UART RX INTERRUPT*/


     /*ENABLE GLOBAL INTERRUPT*/
     __enable_irq();
     /*ENABLE NVIC IN EUSCI_A2 INTERRUPT*/
     NVIC->ISER[0] = 1 << ((EUSCIA2_IRQn) & 31);

}
/*UART PORTS*/
void confg_uart_wired(void){
     P3->SEL0 |= UART_TX | UART_RX;                                /*SET 2 UART PIN AS SECOND FUNCTION*/
}
/*UART CLOCK SYSTEM*/
void uart_cs(void){
     CS->KEY  = CS_KEY_VAL;                                        /*UNLOCK CS MODULE REGISTER ACESS*/
     CS->CTL0 = 0;                                                 /*RESET TUNING PARAMETERS*/
     CS->CTL0 = CS_CTL0_DCORSEL_3;                                 /*SET DCO TO 12MHz (NOMINAL, CENTER OF 8-16MHz RANGE)*/
     CS->CTL1 = CS_CTL1_SELA_2 |                                   /*SELECT ACLK = REFO*/
                CS_CTL1_SELS_3 |                                   /*SMCLK = DCO*/
                CS_CTL1_SELM_3;                                    /*MCLK = DCO*/
     CS->KEY  = 0;
}

/*DELAY MILLISECONDS WHEN SYSTEM CLOCK IS AT 3MHz*/

void delayMs(int n){
    int i, j;
    for(j= 0; j < n;j++);
        for(i= 750;i>0;i--);
}

/*UART COUNT CARACTERS SENT*/
void uart_c_String(char *c){

    int i;
    for(i=0; c[i];i++){
       BUFFER_COUNT++;
    }
    uart_send(c, BUFFER_COUNT);
}


/*UART SEND MULTIPLE BYTES*/
void uart_send(unsigned char *pucData, unsigned char ucLength){

    while(ucLength){
            /*WAIT FOR TX BUFFER TO BE READY FOR NEW DATA*/
            while(!(EUSCI_A2->IFG & EUSCI_A_IFG_TXIFG));           /*CHECK IF NOT SET*/
            /*IF SET, TX INTERRUPT IS PENDING*/
            EUSCI_A2->TXBUF = *pucData;                            /*PUSH DATA TO TX BUFFER*/
            ucLength--;                                            /*LENGTH OF DATA LEFT*/
            pucData++;                                             /*SHIFT POINTER*/
    }
    /*WAIT UNTIL THE LAST BYTE IS COMPLETELY SENT*/
    while(EUSCI_A2->STATW & EUSCI_A_STATW_BUSY);                   /*THIS INDICATE IF EUSCI IS SEND OR RECEIVE*/
}

/*UART GET MULTIPLE BYTES*/
void uart_get(void){
    RX_Buffer[BUFFER_COUNT] = EUSCI_A2->RXBUF;
        if(++BUFFER_COUNT >= 2){
            BUFFER_COUNT = 0;
            EUSCI_A2->IFG &= ~(EUSCI_A_IFG_RXIFG);                 /*RESET RX flag*/
        }
}


void EUSCIA2_IRQHandler(void){
    if(EUSCI_A2->IFG & EUSCI_A_IFG_RXIFG){
              uart_get();                                             /*LIGHT UP P2.1 LED ON RX*/
              LED_PyOUT(G_LED);
    }
    if(EUSCI_A2->IFG & EUSCI_A_IFG_TXIFG){
             EUSCI_A2->IFG &= ~(EUSCI_A_IFG_TXIFG);
             LED_PyOUT(R_LED);                                        /*LIGHT UP P2.0 LED ON RX*/
    }
}

main.c

void main(void){
    /*CLEAR ALL LED RGB*/
    LED_PxCLR(R_LED|G_LED|B_LED);
    LED_PyDIR(R_LED|G_LED|B_LED);

    WatchDogHold();
    uart_cs();
    confg_uart_wired();
    uart_init();

    uart_c_String("Hello World!");
    while(1){

    }
}

void WatchDogHold(void){
WDTCTL = WDTPW | WDTHOLD;  /*STOP WATCHDOG TIMER*/
}

> EUSCI_A2->IFG &= ~(EUSCI_A_IFG_RXIFG); /*RESET RX flag*/
I (still) recommend that you not clear RXIFG this way. Reading RXBUF already cleared it atomically, and doing it this way is hazardous.
> EUSCI_A2->IFG &= ~(EUSCI_A_IFG_TXIFG);
You should not be doing this (ever), since it will stall your transmission. More generally: since you're not using interrupts for TX, your ISR shouldn't be looking at TXIFG at all -- you should remove that whole if() block.

> char RX_Buffer[];
If this is the only declaration, it declares a 0-byte buffer, and you're using 2 bytes in it. (I'm a little surprised the compiler didn't warn you about this.) Try:
> char RX_Buffer[2]; // See also: constant 2 in uart_get()

Ok Bruce,
I already done that you have you told me, but I have declare char RX_Buffer[], because in main a call for a function "uart_c_String()" where i pass the entire text I want sent, so this function count the characters and pass them to "uart_send()" function where dynamically, refill the buffer. Is this a bad practice?

uart.c

#include "msp.h"
#include "uart.h"
#include "main.h"
#include <stdint.h>
#include <stdio.h>

char RX_Buffer[2];
int BUFFER_COUNT = 0;

/*UART CONFIGURATION*/
void uart_init(void){
     /*Configure UART*/
     EUSCI_A2->CTLW0 |= EUSCI_A_CTLW0_SWRST;                        /*PUT EUSCI IN RESET*/
     EUSCI_A2->CTLW0  = EUSCI_A_CTLW0_SWRST |                       /*REMAIN EUSCI IN RESET*/
                      EUSCI_B_CTLW0_SSEL__SMCLK;                    /*CONFIGURE EUSCI CLOCK SMCLK*/
     /*Baud Rate calculation
     *12000000/(16*9600) = 78.125
     *Fractional portion = 0.125
     *User's Guide Table 21-4: UCBRSx = 0x10
     *UCBRFx = int ( (78.125-78)*16) = 2
     */
     EUSCI_A2->BRW = 78;                                            /*12000000/16/9600*/
     EUSCI_A2->MCTLW = (2 << EUSCI_A_MCTLW_BRF_OFS) |
                       EUSCI_A_MCTLW_OS16;
     EUSCI_A2->CTLW0 &= ~(EUSCI_A_CTLW0_SWRST);                     /*INITIALIZE EUSCI*/
     EUSCI_A2->IFG   &= ~(EUSCI_A_IFG_RXIFG);
     EUSCI_A2->IE |= EUSCI_A_IE_RXIE;                               /*ENABLE THE UART RX INTERRUPT*/


     /*ENABLE GLOBAL INTERRUPT*/
     __enable_irq();
     /*ENABLE NVIC IN EUSCI_A2 INTERRUPT*/
     NVIC->ISER[0] = 1 << ((EUSCIA2_IRQn) & 31);

}
/*UART PORTS*/
void confg_uart_wired(void){
     P3->SEL0 |= UART_TX | UART_RX;                                /*SET 2 UART PIN AS SECOND FUNCTION*/
}
/*UART CLOCK SYSTEM*/
void uart_cs(void){
     CS->KEY  = CS_KEY_VAL;                                        /*UNLOCK CS MODULE REGISTER ACESS*/
     CS->CTL0 = 0;                                                 /*RESET TUNING PARAMETERS*/
     CS->CTL0 = CS_CTL0_DCORSEL_3;                                 /*SET DCO TO 12MHz (NOMINAL, CENTER OF 8-16MHz RANGE)*/
     CS->CTL1 = CS_CTL1_SELA_2 |                                   /*SELECT ACLK = REFO*/
                CS_CTL1_SELS_3 |                                   /*SMCLK = DCO*/
                CS_CTL1_SELM_3;                                    /*MCLK = DCO*/
     CS->KEY  = 0;
}

/*DELAY MILLISECONDS WHEN SYSTEM CLOCK IS AT 3MHz*/

void delayMs(int n){
    int i, j;
    for(j= 0; j < n;j++);
        for(i= 750;i>0;i--);
}

/*UART COUNT CARACTERS SENT*/
void uart_c_String(char *c){
    int i;
    for(i=0; c[i];i++){
       BUFFER_COUNT++;
    }
    uart_send(c, BUFFER_COUNT);
}


/*UART SEND MULTIPLE BYTES*/
void uart_send(unsigned char *pucData, unsigned char ucLength){

    while(ucLength){
            /*WAIT FOR TX BUFFER TO BE READY FOR NEW DATA*/
            while(!(EUSCI_A2->IFG & EUSCI_A_IFG_TXIFG));           /*CHECK IF NOT SET*/
            /*IF SET, TX INTERRUPT IS PENDING*/
            EUSCI_A2->TXBUF = *pucData;                            /*PUSH DATA TO TX BUFFER*/
            ucLength--;                                            /*LENGTH OF DATA LEFT*/
            pucData++;                                             /*SHIFT POINTER*/
    }
    /*WAIT UNTIL THE LAST BYTE IS COMPLETELY SENT*/
    while(EUSCI_A2->STATW & EUSCI_A_STATW_BUSY);                   /*THIS INDICATE IF EUSCI IS SEND OR RECEIVE*/
}

/*UART GET MULTIPLE BYTES*/
void uart_get(void){
    RX_Buffer[BUFFER_COUNT] = EUSCI_A2->RXBUF;
        if(++BUFFER_COUNT >= 2){
            BUFFER_COUNT = 0;
        }
}


void EUSCIA2_IRQHandler(void){
    if(EUSCI_A2->IFG & EUSCI_A_IFG_RXIFG){
        LED_PyOUT(G_LED);
        uart_get();

    }
}

I didn't say not to declare it, but just that "If this is the only declaration" it needs to have a size provided (which you've done).

So what does it do when you run it?

So, um, is that a success? (I'm not quite sure what I'm looking at.)

No Bruce, I can not get the data correctly on the device, can you give me some tips.

I'm completely lost I do not know what to do

I don't see your definitions for UART_RX and UART_TX here. They should look something like:
> #define UART_RX BIT2 // P3.2 (UCA2RXD)
> #define UART_TX BIT3 // P3.3 (UCA2TXD)

Hello Bruce,

all definitions, and functions prototypes are defined in uart.h header file.

You have uart.h and we don't. Do those definitions look right?

yes the definitions are right...

uart.h

#ifndef UART_H_
#define UART_H_

/*DEFINE*/
#define UART_TX BIT3
#define UART_RX BIT2

void uart_init(void);
void confg_uart_wired(void);
void uart_cs(void);



#endif /* UART_H_ */

When I took your source and (1) dummied the LED functions (2) provided those UART definitions and (3) jumpered P3.2/3 to the Launchpad "bridge" header (J101), I received your message just fine using a PC with PuTTY.

That suggests that the trouble is in (a) the LED functions or (b) something external, e.g. wiring or maybe the configuration of your Bluetooth module. I'm not in a position to check those things.

Bruce  i share with you the main.h, there is where that functions are...

main.h

#ifndef MAIN_H_
#define MAIN_H_

void WatchDogHold(void);

/*LED PIN CONFIGURATION*/
#define LED_PxOUT  P2->OUT
#define LED_PxDIR  P2->DIR
#define LED_PxCLR(x)  LED_PxOUT &= ~(x & 0x00FF)
#define LED_PxSET(x)  LED_PxOUT |=  (x & 0x00FF)
#define LED_PyDIR(x)  LED_PxDIR |=  (x & 0x00FF)
#define LED_PyOUT(x)  LED_PxOUT ^=  (x & 0x00FF)

#define R_LED    BIT0                       /*RED LED*/
#define G_LED    BIT1                       /*GREEN LED*/
#define B_LED    BIT2                       /*BLUE LED*/

#endif /* MAIN_H_ */

The LED definitions look pretty innocent. (I would suggest putting parentheses around the "x", but that's not causing you trouble here.)

I think that leaves: (b) something external. The next step would be to check (again) your wiring and your BT module configuration.

You can also try just what I did: Feed P3.2/3 through a USB chip to a PC with your favorite terminal program. That result ought to tell you where to look further.

Armando,

 A couple of suggestions:

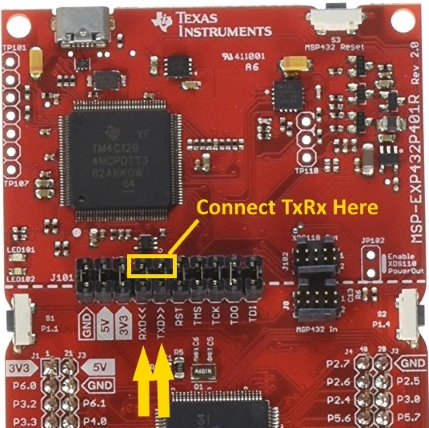

1. Regarding Bruce's suggestion of routing P3.2/3 to a USB chip. You don't need a separate chip if you have an MSP432 LaunchPad.  The JTAG emulator built-in to the board also provides a backchannel UART through its USB cable .  You'll need to remove the existing jumpers on J101's RXD and TXD pins and connect your P3.2/3 to the pins (in the yellow box in the picture below)

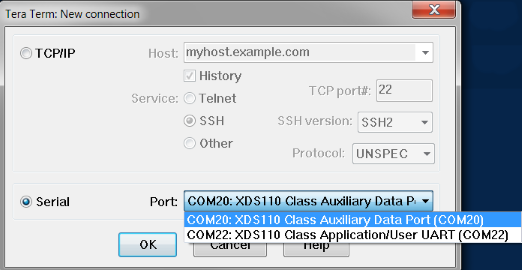

   1. Once properly connected, you can use a terminal emulator (like TeraTerm) to connect to the appropriate COM port. See the picture below and select the "Application/User UART"
2. An alternative is to directly connect the LaunchPad's RXD/TXD pins (in the yellow box) to your Bluetooth board and see if they function correctly when driven in this way.

Hope that helps.

-Bob L.

Bruce an Bob thank you for your advices,

have realized the changes they told me but I did not get results, I think my problem is the data sending function and reception, connected interruptions, I think it is not well done,
