How to modify the parameters of IWR1642 to make the maximum detection range above 150m?

ctc ctc

Other Parts Discussed in Thread: IWR1642

Hello, everyone! I think I need your help. Thanks!

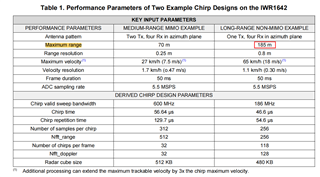

I have searched for information about the maximum detection distance of IWR1642 and found that the maximum detection distance can reach 185m. The following figure is

I checked the profile of the IWR1642 chip, the long distance profile, but the maximum distance is not more than 150m. The following figure shows the file content

What parameters should I modify in this file to make the maximum detection range exceed 150m? What is the formula for calculating the maximum detection distance?

Do you have any documentation or links? Thank you very much!

over 3 years ago

+1 Vaibhav Mahimkar over 3 years ago

TI__Mastermind 23725 points

Hello

Please start with following for collateral based on stage of development.

Industrial (IWR) mmWave radar sensors | Overview | TI.com > Design & development

We would recommend getting an understanding of following :

1. FMCW basics -> to understand what parameters affect the Range (Max distance)

2. Antenna gain and Tx power --> Max distance at which signals can faithfully reflect from

3. Use #1, #2 in FMCW equations OR use the Estimator tool to calculate reachable distance

4. Use the parameters calculated in #3 to configure simple demo examples like OOB demo to see result of reflection

(+) IWR1642BOOST: Observed Max range of 25m - how to improve? - Sensors forum - Sensors - TI E2E support forums

(+) IWR1642BOOST: question about maximum range in 'Traffic Monitoring Object Detection and Tracking' example - Sensors forum - Sensors - TI E2E support forums

(+) IWR1843: traffic monitoring design system using mmwave radar - Sensors forum - Sensors - TI E2E support forums

(+) solution for traffic monitoring using these radar - Sensors forum - Sensors - TI E2E support forums

(+) AWR1443BOOST: Configuration for Medium/Long Range Detection - Sensors forum - Sensors - TI E2E support forums

(+) AWR1843BOOST: Calculating Max range for a particular RCS and SNR..using mmWave sensing estimator - Sensors forum - Sensors - TI E2E support forums

(+) AWR1843: Maximum Range Calculation - Sensors forum - Sensors - TI E2E support forums

Thank you,

Vaibhav

0 ctc ctc over 3 years ago in reply to Vaibhav Mahimkar

Intellectual 300 points

Hello ,Vaibhav. Thank you very much!

However, I still have some questions that I would like to ask for your help. I found the formula for calculating the maximum distance, as follows

1.In the first formula, decreasing the value of S increases the maximum range. But I don't see how S is retrieved or set.

2.From formula 2, it can be seen that increasing TX Gain and RX Gain or decreasing the minimum SNR can make SNR larger.

But normally as the gain gets bigger, the maximum range gets bigger. Is there a correlation between SNR and maximum range?

Does SNR get bigger and the maximum range gets bigger, or does SNR get bigger and the maximum range gets smaller, or is there no correlation?

3.What parameters can be configured to increase the gain? Or is the gain of IWR1642 not changeable, can only consider cascade mode to increase?

Thank you,

ctc

+1 Brennan Hartigan over 3 years ago in reply to ctc ctc

TI__Genius 10917 points

Hi,

1) The value of S comes from the frequency slope of the chirp profile:

This value is set in the profileCfg configuration command, and is the value of <freqSlopeConst>. Please see page 21 of the SDK User's Guide for more information on this parameter.

2) As Range increases, SNR decreases, as indicated by the equation

3) To increase the RX gain, you can set the <rxGain> value in the profileCfg configuration command. Please see page 22 of the SDK User's Guide.

Regards,

Brennan

0 ctc ctc over 3 years ago in reply to Brennan Hartigan

Intellectual 300 points

HI，Brennan.Thank you for your help.

I still have some questions about the use of mmWave Sensing Estimator.

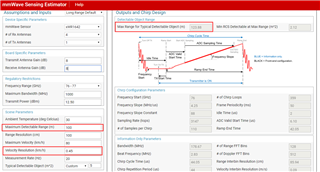

[1] <Detection SNR> parameter in <Additional Parameters> can be set in chip configuration Parameters? Because reducing this value, the maximum detection range will be greatly increased.Like this

[2] Are TX Gain and Rx Gain in <Board Specific Parameters> unchanged for IWR1642 with a single chip? For example, the EVM gain of TI is 8db. Increasing the parameter value here will also increase the maximum detection range.Like this

[3] What is the difference between <Maximum Detectable Range> and <Max Range for Typical Detectable Object>? Which one shall prevail? In addition, the smaller the <Velocity Resolution>, will one target be detected into two targets?

Regards,

ctc

+1 Brennan Hartigan over 3 years ago in reply to ctc ctc

TI__Genius 10917 points

Hi ctc,

Detection SNR is an additional parameter, meaning it is an input to build in engineering margin into the design. It is not a user-set parameter.

TX gain is not a profile configuration you can set, it is used in other calculations which is why it is included on the sensing estimator
RX gain is adjustable via the chirp configuration. Please see page 22 of the SDK User's Guide.

maximum detectable range:
- Maximum range where objects are still detectable by the chirp design. Maximum range increase memory requirements and must be balanced against other Scene Parameters
Max range for typical detectable object:
- maximum range where the Typical Detectable Object will still be detected

Maximum detectable range is something you set, while the max range for typical detectable object is what the calcualted result of the chirp design is. This output provides the guideline for maximum range of detection for Typical Detectable Object.

velocity resolution:
- Smallest difference in velocity of two objects to detect both objects individually with velocity only. Smaller velocity resolution will impact Min # of Chirp Loops and reduce maximum Measurement Rate
- A smaller velocity resolution just means that you can detect two objects moving with velocity at a very high accuracy if their velocities have a small difference.

Regards,

Brennan

0 ctc ctc over 3 years ago in reply to Brennan Hartigan

Intellectual 300 points

Hi,Brennan.Your advice is of great help to me. Thank you very much!

Regards,

ctc
